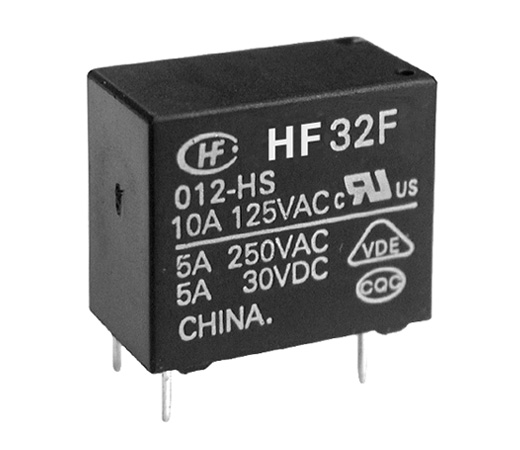

Product Information |
|
1.Certificates and File No. |
|
UL,File No.: E134517 |
|
VDE,File No.:40012204 |
|
CQC,File No.:CQC080020278011 |
|
|
|
|
|
|
2.Features |
|
1.10A switching capability |
|
2.1 Form A and 1 Form C configurations |
|
3.Subminiature,standard PCB layout |
|
4.Plastic sealed and flux proofed types available |
|
5.Environmental friendly product(RoHS compliant) |
|
6.Outline Dimensions:(18.4*10.2*15.3)mm |
|
|
|
|
|
|
3.Contact Data |
|
Arrangement |
1A,1C |
|
Contact resistance |
100mΩ(at 1A 6VDC) |
|
Contact material |
AgNi,AgCdO |
|
Contact rating (Res.load) |
1A |
1C |
|
Standard |
Sensitive |
Standard |
|
H: 5A 250VAC 5A 30VDC 10A 125VAC |
HL: 3A 250VAC 3A 30VDC HLQ: 8A 250VAC |
3A 250VAC 3A 30VDC |
|
Max.switching voltage |
250VAC/30VDC |
|
Max.switching current |
10A |
|
Max.switching power |
1250VA/150W |
|
Mechanical endurance |
10000000 OPS |
|
Electrical endurance |
100000 OPS |
|
|
|
|
|
|
4.CHARACTERISTICS |
|
Insulation resistance |
|
1000mΩ(at 500VDC) |
|
Dielectric strength |
Between coul&contacts |
|
2500VAC 1 min |
|
Between open contacts |
|
1000VAC 1 min |
|
Operate time(at nomi.volt) |
8ms max. |
|
Release time(at nomi.volt) |
5ms max. |
|
Shock resistance |
Functional |
98m/s2 |
|
Destructive |
980m/s2 |
|
Vibration resistance |
10Hz to 55Hz 1.5mm DA |
|
Humidity |
35% to 95% RH |
|
Ambient temperature |
Standard |
|
|
|
High capacity |
under 40 ℃ to 60℃ |
|
Temination |
PCB |
|
Unit weight |
Approx.6g |
|
Construction |
Plastic sealed Flux proofed |
|
|
|
|
|
|
5.Coil |
|
Coil Power |
Standard: 450mW; Sensitive:200mW |
|
|
|
Shipping & Payment |
|
MOQ |
1000 PCS |
|
Samples |
Samples are available |
|
Sample lead time: 1-2 weeks |
|
Packing detail |
1000 pcs per carton |
|
Carton size:(34×28×21 )cm |
|
Gross Weight 7.5kg |
|
Bulk lead time |
3-4 weeks after sample confirmed and deposit paid |
|
Delivery clause |
FOB Xiamen |
|
Terms of payment |
T/T,Western Union,Paypal |
