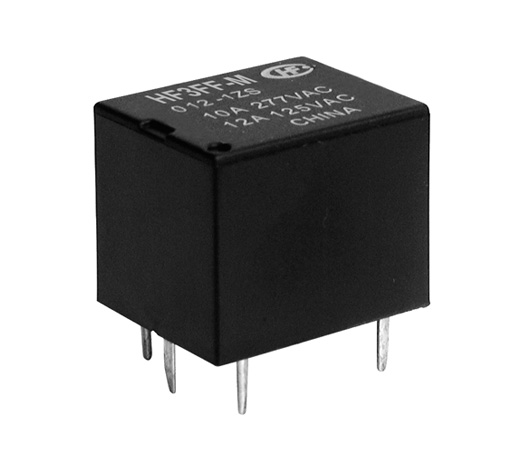

Product Information |
|
|
|
|
|
1.Features |
|
1.15A switching capability |
|
2.1 Form A and 1 Form C configurations |
|
3.Subminiature,standard PCB layout |
|
4.Plastic Sealed and flux proofed types available |
|
5.Environmental friendly product(RoHS compliant) |
|
6.Outline Dimensions:(19.0*15.2*15.5)mm |
|
|
|
|
|
2.Contact Data |
|
Arrangement |
1C |
1A |
|
Contact resistance |
100mΩ(at 1A 6VDC) |
|
Contact material |
AgSnO2 |
|
Contact rating (Res.load) |
15A 13.5VDC |
NO: 15A 13.5VDC NC:5A 13.5VDC |
|
Max.switching voltage |
30VDC |
|
Max.switching current |
15A |
|
Max.switching power |
210W |
|
Mechanical endurance |
10000000 OPS |
|
Electrical endurance |
100000 OPS |
|
|
|
|
|
3.CHARACTERISTICS |
|
Insulation resistance |
1000mΩ(at 500VDC) |
|
Dielectric strength |
Between coul&contacts |
1500VAC 1 min |
|
Between open contacts |
750VAC 1 min |
|
Operate time(at nomi.volt) |
10ms max. |
|
Release time(at nomi.volt) |
10ms max. |
|
Shock resistance |
Functional |
98m/s2 |
|
Destructive |
980m/s2 |
|
Vibration resistance |
10Hz to 50Hz 1.5mm DA |
|
Humidity |
35% to 85% RH |
|
Ambient temperature |
under 40 ℃ to 85℃ |
|
Temination |
PCB |
|
Unit weight |
Approx.10g |
|
Construction |
Plastic sealed Flux proofed |
|
|
|
Shipping & Payment |
|
MOQ |
1000 PCS |
|
Samples |
Samples are available |
|
Sample lead time: 1-2 weeks |
|
Packing detail |
1000 pcs per carton |
|
Carton size:(35×29×17 )cm |
|
Gross Weight 11.5kg |
|
Bulk lead time |
3-4 weeks after sample confirmed and deposit paid |
|
Delivery clause |
FOB Xiamen |
|
Terms of payment |
T/T,Western Union,Paypal |
