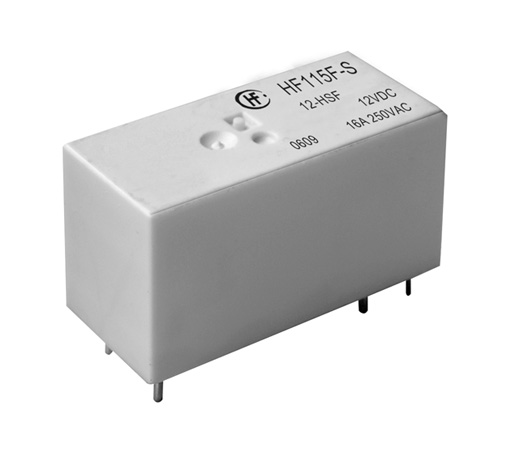

Product Information |
|
1.Certificates and File No. |
|
UL,File No.: E134517 |
|
VDE,File No.:116934 |
|
CQC,File No.: CQC08002028130 |
|
|
|
|
|
2.Features |
|
1.Low height:15.7mm |
|
2.Special contact struction |
|
3.5kV dielectric strength(between coil and contacts) |
|
4.Creepage distance:10mm |
|
5.Meeting reinforce insulation |
|
6.Product in accordance to IEC 60335-1 available |
|
7.Incandescent lamp load:3000W 230VAC |
|
8.Plastic Sealed and flux proofed types available |
|
9.Environmental friendly product(RoHS compliant) |
|
10.Outline Dimensions:(29.0*12.7*15.7)mm |
|
|
|
|
|
3.Contact Data |
|
Arrangement |
1A |
|
Contact resistance |
100mΩ(at 1A 6VDC) |
|
Contact material |
W+AgSnO2 |
|
Contact rating (Res.load) |
Resistive:16A 250VAC Incandescent Lamp: 3000W 230VAC |
|
Max.switching voltage |
440VAC |
|
Max.switching current |
16A |
|
Max.switching power |
4000VA |
|
Mechanical endurance |
500000 OPS |
|
Electrical endurance |
10000 OPS |
|
|
|
|
|
4.CHARACTERISTICS |
|
Insulation resistance |
1000mΩ(at 500VDC) |
|
Dielectric strength |
Between coil&contacts |
5000VAC 1 min |
|
Between open contacts |
1250VAC 1 min |
|
Surge voltage (between coil&contacts) |
10kV(1.2*50us) |
|
Operate time(at nomi.volt) |
15ms max. |
|
Release time(at nomi.volt) |
8ms max. |
|
Temperature rise(at nomi.volt.) |
55K max. |
|
Shock resistance |
Functional |
98m/s2 |
|
Destructive |
980m/s2 |
|
Vibration resistance |
10Hz to 50Hz 1g |
|
Humidity |
35% to 85% RH |
|
Ambient temperature |
under 40 ℃ to 85℃ |
|
Temination |
PCB |
|
Unit weight |
Approx.13.5g |
|
Construction |
Plastic sealed Flux proofed |
|
|
|
|
|
5.Coil |
|
Coil Power |
400mW |
|
|
|
|
|
|
|
