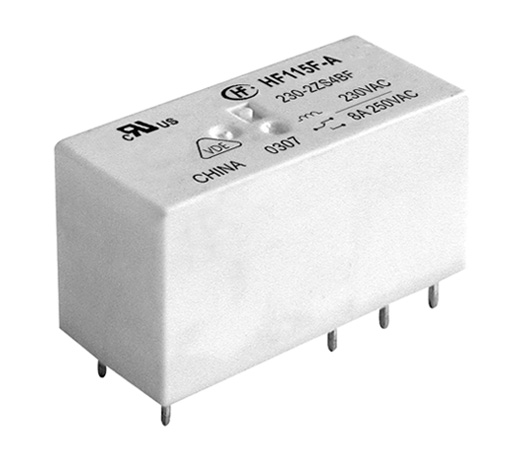

Product Information |
|
1.Certificates and File No. |
|
UL,File No.: E134517 |
|
VDE,File No.:116934 |
|
|
|
|
|
2.Features |
|
1.AC voltage coil type |
|
2.16A switching capability |
|
3.1&2 pole configurations |
|
4.5kV dielectric strenght(between coil and contacts) |
|
5.Meeting VDE 0700,0631 reinforce insulation |
|
6.Product in accordance to IEC 60335-1 available |
|
7.Socket available |
|
8.Plastic Sealed and flux proofed types available |
|
9.Low height:15.7mm |
|
10.Creepage distance:10mm |
|
11.Environmental friendly product(RoHS compliant) |
|
12.Outline Dimensions:(29.0*12.7*15.7)mm |
|
|
|
|
|
3.Contact Data |
|
Arrangement |
1A,1B,1C |
2A,2B,2C |
|
Contact resistance |
100mΩ(at 1A 6VDC) |
|
Contact material |
See ordering info. |
|
Contact rating (Res.load) |
12A/16A 250VAC |
8A 250VAC |
|
Max.switching voltage |
440VAC/300VDC |
|
Max.switching current |
12A/16A |
8A |
|
Max.switching power |
3000VA/4000VA |
2000VA |
|
Mechanical endurance |
100000 OPS |
|
Electrical endurance |
50000 OPS(See approval reports for more details) |
|
|
|
|
|
4.CHARACTERISTICS |
|
Insulation resistance |
1000mΩ(at 500VDC) |
|
Dielectric strength |
Between coil&contacts |
5000VAC 1 min |
|
Between open contacts |
1000VAC 1 min |
|
Between contact sets |
2500VAC 1 min |
|
Temperature rise(at nomi.volt.) |
65K max. |
|
Shock resistance |
Functional |
98m/s2 |
|
Destructive |
980m/s2 |
|
Vibration resistance |
10Hz to 150Hz 10g/5g |
|
Humidity |
35% to 85% RH |
|
Ambient temperature |
under 40 ℃ to 85℃ |
|
Temination |
PCB |
|
Unit weight |
Approx.13.5g |
|
Construction |
Plastic sealed Flux proofed |
|
|
|
|
|
5.Coil |
|
Coil Power |
0.75VA |
|
|
|
|
|
|
|
