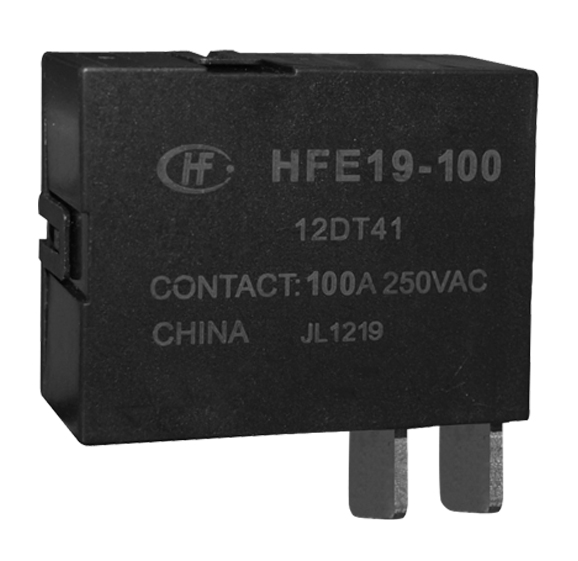

Product Information |
|
1.CONTACT DATA |
|
Contact arrangement |
1A,1B |
|
Contact resistance |
2mΩ(at 1A 24VDC) |
|
Contact material |
AgSnO2 |
|
Contact ratings |
100A 250VAC |
|
Max.switching Voltage |
277 VAC |
|
Max.switching Current |
100A |
|
Max.switching power |
25000VA |
|
Mechanical endurance |
1000000 OPS |
|
Meter:100000 OPS |
|
|
|
|
|
|
|
|
|
|
|
2.CHARACTERISTICS |
|
Insulation resistance |
1000mΩ(at 500 VDC) |
|
Dielectric Strength |
Between coil & contacts |
|
4000 VAC 1min |
|
Between open contacts |
|
2000 VAC 1min |
|
Creepage distance |
8mm |
|
Operate time(at nomi.volt.) |
20ms max. |
|
Release time(at nomi.volt.) |
20ms max. |
|
Vibration resistance |
|
10Hz to 55Hz 1.5mm DA |
|
Shock resistance |
Functional |
98m/s2 |
|
Destructive |
980m/s2 |
|
Humidity |
98% RH,40 °C |
|
Ambient temperature |
under 40 °C to 70°C |
|
Termination |
QC |
|
Unit Weight |
Approx.65g |
|
Construction |
Dust Protected |
|
|
|
|
|
3.Coil |
|
Coil Power |
Single Coil Latching |
2.4W |
|
Double Coisls Latching |
4.8W |
|
|
|
|
|
Shipping & Payment |
|
MOQ |
1000 PCS |
|
Samples |
Sample lead time: 4-5 weeks |
|
Sample fee and freight should be paid by buyers |
|
Packing detail |
200 pcs per carton |
|
Carton size:(34.5*28.5*23.5))cm |
|
Gross Weight 12kg |
|
Bulk lead time |
35 days after sample confirmed and deposit paid |
|
Delivery clause |
FOB Xiamen |
|
Terms of payment |
T/T,Western Union,Paypal is also available for the small amount |
