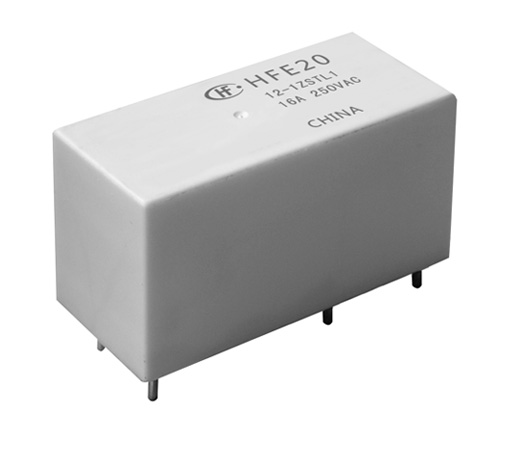

Product Information |
|
1.CONTACT DATA |
|
Contact arrangement |
1A,1B,1C |
|
Contact resistance |
50mΩ(at 1A 24VDC) |
|
Contact material |
AgSnO2,W+AgSnO2 |
|
Contact ratings |
16A 250VAC |
|
Max.switching Voltage |
277 VAC |
|
Max.switching Current |
16A |
|
Max.switching power |
5000VA |
|
Mechanical endurance |
510000000 OPS |
|
Electrical endurance |
30000 OPS(At 20A,1 Form A) |
|
100000 OPS(At 16A 250VAC) |
|
50000 OPS(At 16A ,1 Form C) |
|
|
|
|
|
|
2.CHARACTERISTICS |
|
Insulation resistance |
1000mΩ(at 500 VDC) |
|
Dielectric Strength |
Between coil & contacts |
|
4400 VAC 1min |
|
Between open contacts |
|
1000 VAC 1min |
|
Creepage distance |
8mm |
|
Operate time(at nomi.volt.) |
15ms max. |
|
Release time(at nomi.volt.) |
15ms max. |
|
Vibration resistance |
|
10Hz to 55Hz 1.5mm DA |
|
Shock resistance |
Functional |
98m/s2 |
|
Destructive |
980m/s2 |
|
Humidity |
98% RH,40 °C |
|
Ambient temperature |
under 40 °C to 85°C |
|
Termination |
PCB |
|
Unit Weight |
Approx.13g |
|
Construction |
Plastic sealed,Flux proofed |
|
|
|
|
|
3.Coil |
|
Coil Power |
1 coil latching |
400 mW |
|
2 coils latching |
600 mW |
|
|
|
|
|
Shipping & Payment |
|
MOQ |
1000 PCS |
|
Samples |
Sample lead time: 4-5 weeks |
|
Sample fee and freight should be paid by buyers |
|
Packing detail |
800 pcs per carton |
|
Carton size:(33*24*22))cm |
|
Gross Weight 12kg |
|
Bulk lead time |
35 days after sample confirmed and deposit paid |
|
Delivery clause |
FOB Xiamen |
|
Terms of payment |
T/T,Western Union |
