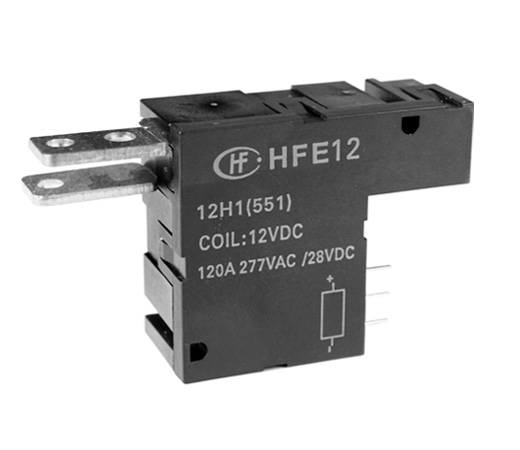

Technical parameters

• Product Information
  1.CONTACT DATA
  Contact arrangement	1A,1B
  Contact resistance	1mΩ(at 1A 24VDC)
  Contact material	AgSnO2
  Contact ratings	120A277VAC/28VDC
  Max.switching Voltage	440 VAC
  Max.switching Current	120A
  Max.switching power	33240VA/3360W
  Mechanical endurance	100000OPS
  Electrical endurance	10000 OPS
  2.CHARACTERISTICS
  Insulation resistance		1000mΩ(at 500 VDC)
  Dielectric Strength                 (Between coil & contacts)		4000VAC 1min
  Creepage distance		8mm
  Operate time(at nomi.volt.)		20ms max.
  Release time(at nomi.volt.)		20ms max.
  Vibration resistance			10Hz to 55Hz 1.0mm DA
  Shock resistance	Functional	98m/s2
  	Destructive	980m/s2
  Humidity		98% RH,40 ℃
  Ambient temperature		under 40 ℃ to 70℃
  Termination		QC
  Unit Weight		Approx.85g
  Construction		Dust Protected
  3.Coil
  Coil Power	1 coil latching		2.4 W
  	2 coils latching		4.8 W
  Shipping & Payment
  MOQ	1000 PCS
  Samples	Sample lead time: 3 weeks
  	Sample fee and freight should be paid by buyers
  Packing detail	60 pcs per carton
  	Carton size:(34.5×28.5×21 )cm
  	Gross Weight 5.6kg
  Bulk lead time	35 days after sample confirmed and deposit paid
  Delivery clause	FOB Xiamen
  Terms of payment	T/T,Western Union
