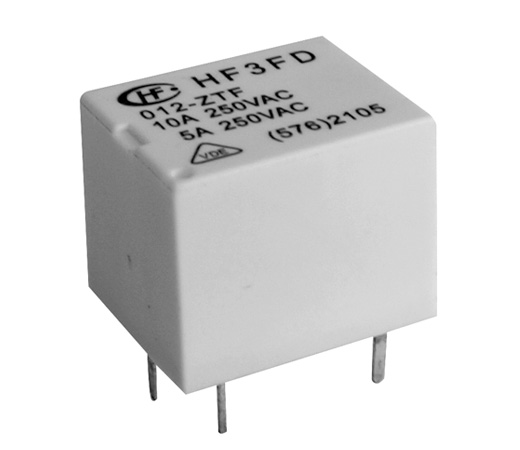

Product Information |
|
1.Certificates and File No. |
|
UL,File No.: E134517 |
|
VDE,File No.:40014057 |
|
CQC,File No.:CQC09002034350 |
|
|
|
|
|
2.Features |
|
1.15A switching capability |
|
2.1 Form A and 1 Form C configurations |
|
3.Subminiature,standard PCB layout |
|
4.Flammability class according to UL94.V-0 |
|
5.Plastic Sealed and flux proofed types available |
|
6.Product in accordance to IEC 60335-1 available |
|
7.Environmental friendly product(RoHS compliant) |
|
8.Outline Dimensions:(19.0*15.2*15.5)mm |
|
|
|
|
|
3.Contact Data |
|
Arrangement |
1C |
1A |
|
Contact resistance |
100mΩ(at 1A 6VDC) |
|
Contact material |
AgSnO2,AgNi |
|
Contact rating (Res.load) |
10A 250VAC 10A 28VDC |
NO: 10A 250VAC/28VDC NO/NC:7A/3A 250VAC NO/NC:5A/5A 250VAC |
|
Max.switching voltage |
277VAC/30VDC |
|
Max.switching current |
15A |
10A |
|
Max.switching power |
2770VA/300W |
|
Mechanical endurance |
10000000 OPS |
|
Electrical endurance |
100000 OPS(NO,at 7A 250VAC) 50000 OPS(NO,at 10A 250VAC) |
|
|
|
|
|
4.CHARACTERISTICS |
|
Insulation resistance |
1000mΩ(at 500VDC) |
|
Dielectric strength |
Between coul&contacts |
2000VAC 1 min |
|
Between open contacts |
750VAC 1 min |
|
Operate time(at nomi.volt) |
10ms max. |
|
Release time(at nomi.volt) |
5ms max. |
|
Shock resistance |
Functional |
98m/s2 |
|
Destructive |
980m/s2 |
|
Vibration resistance |
10Hz to 50Hz 1.5mm DA |
|
Humidity |
35% to 85% RH |
|
Ambient temperature |
under 40 ℃ to 105℃ |
|
Temination |
PCB |
|
Unit weight |
Approx.10g |
|
Construction |
Plastic sealed Flux proofed |
|
|
|
|
|
5.Coil |
|
Coil Power |
360mW |
|
|
|
|
|
6.SAFETY APPROVAL RATINGS |
|
UL/CUL |
AgSnO2:1 Form A |
10A 250VAC at 85℃ |
|
AgSnO2:1 Form C |
NO:10A 250VAC at 85℃ NO/NC:5A/5A 250VAC at 85℃ NO:1/2HP 125VAC NO:TV-5 120VAC |
|
AgNi:1 Form A |
6A 250VAC at 105℃ 10A 250VAC at 85℃ |
|
AgNi:1 Form C |
NO:10A 250VAC at 85℃ NO:6A 250VAC at 105℃ NC: 6A/250VAC at 85℃ NO/NC:7A/3A 250VAC at 85℃ NO:1/2HP 125VAC |
|
VDE |
AgSnO2:1 Form A |
10A 250VAC at 85℃ |
|
AgSnO2:1 Form C |
NO:10A 250VAC at 85℃ NO/NC:5A/5A 250VAC at 85℃ |
|
AgNi:1 Form A |
6A 250VAC at 105℃ 10A 250VAC at 85℃ |
|
AgNi:1 Form C |
NO:10A 250VAC at 85℃ NO:6A 250VAC at 105℃ NC: 6A/250VAC at 85℃ NO/NC:7A/3A 250VAC at 85℃ |
|
|
|
